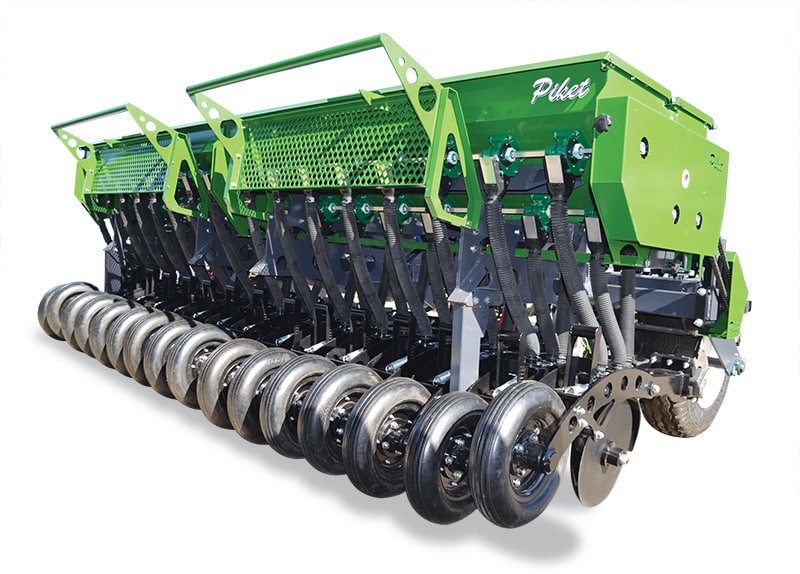

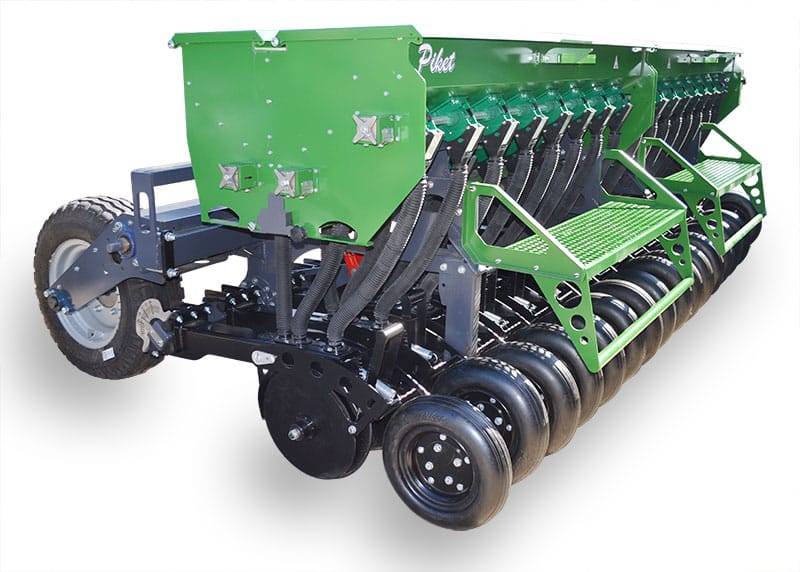

Disc Seeder

APPLICATION OF: Fine seed crops, larger seeds, soya bean, fertiliser (granule size) with seed.

Models: 16-Row / 18-Row / 20-Row (10” Row Spacing) or 10-Row / 12-Row / 14-Row (15” Row Spacing) or 8-Row / 10-Row / 12-Row (18” Row Spacing)
Designed specifically for conventional planting on prepared seedbeds
Design is compact and light, this allow for larger machine on three-point linkage
Low-mounted seed and fertiliser bins with flexible hoses for quick and easy filling
Independently adjustable row depth with contour-following press wheels for accurate, uniform seed placement
Simple, user-friendly calibration system for fast and accurate setup
Downforce can be adjusted directly from the tractor with hydraulic cylinder
Downforce can be adjusted for hard to extremely soft soils (negative down force)
Foldable access steps for safe and easy maintenance
Rubber torsion suspension reduce maintenance cost
Operator-friendly design

More information (videos, description, gallery)

Category: Piket Planters

Videos

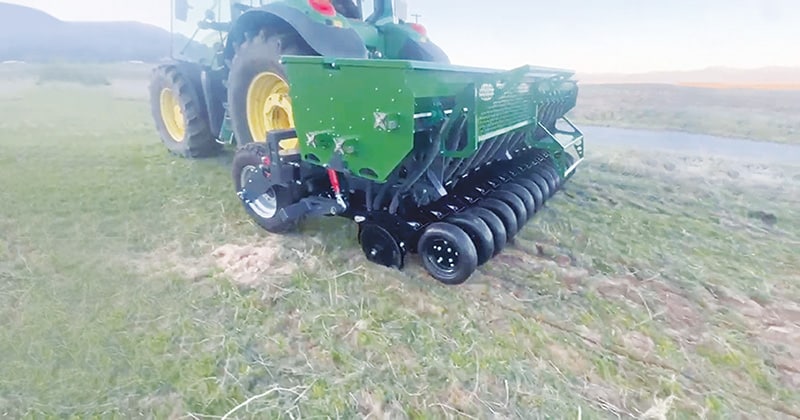

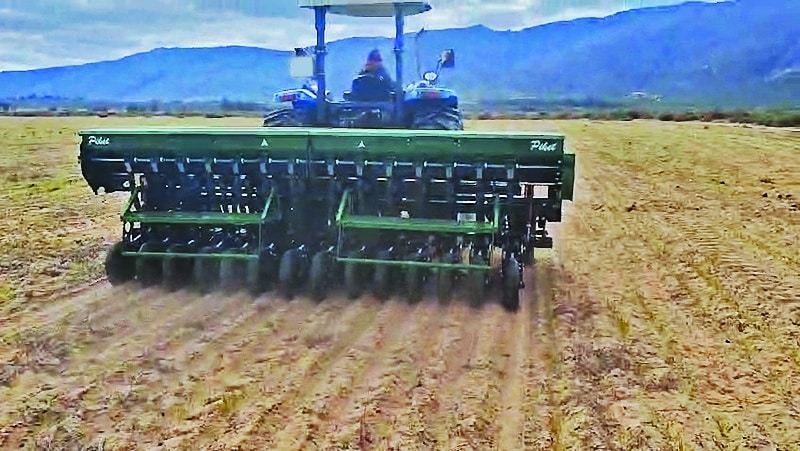

Piket Disc Seeder

Description

The Piket Disc Seeder is engineered for high-efficiency conventional farming on prepared and ploughed land. Its innovative, compact build shifts weight closer to the tractor, significantly improving balance, lifting capacity, and manoeuvrability. Built for robust durability and low maintenance, this machine features an advanced 3-bin system that simultaneously sows fertiliser, grain, and fine seed – placing fine seed shallowly, while delivering main seed and fertiliser at a precise, uniform depth.

Designed with the operator in mind, it allows for easy, comfortable depth adjustment per row, alongside on-the-fly downforce adjustments directly from the tractor seat. Safety and efficiency are further enhanced by a low-profile seed bin for easier loading. The seeder is also available in custom row spacing options to perfectly match your farm’s requirements.

MODELS	16-ROW (10”)	18-ROW (10”)	20-ROW (10”)	10-ROW (12”)	12-ROW (12”)	14-ROW (12”)	8-ROW (18”)	10-ROW (18”)	12-ROW (18”)
ROW SPACING	10” / 254 mm			12” / 381 mm			18” / 457 mm
CODE	DS-1610	DS-1810	DS-2010	DS-1015	DS-1215	DS-1415	DS-0818	DS-1018	DS-1218
ROW SPACING	10” / 254 mm			12” / 381 mm			18” / 457 mm
PLANT WIDTH	4.06 m	4.57 m	5.08 m	3.8 m	4.56 m	5.32 m	3.66 m	4.57 m	5.48 m
NUMBER OF ROWS	16	18	20	10	12	14	8	10	12
TOWING ACTION	3 point (Cat 2)
IMPLEMENT MASS (EMPTY)	2.1 Ton	2.3 Ton	2.57 Ton	1.68 Ton	1.97 Ton	2.26 Ton	1.52 Ton	1.85 Ton	2.17 Ton
IMPLEMENT SIZE (W x H x L)	4.2 x 1.4 x 2.4 m	4.7 x 1.4 x 2.4 m	5.2 x 1.4 x 2.4 m	3.95 x 1.4 x 2.4 m	4.7 x 1.4 x 2.4 m	5.5 x 1.4 x 2.4 m	3.8 x 1.4 x 2.4 m	4.7 x 1.4 x 2.4 m	5.6 x 1.4 x 2.4 m
SEED VOLUME (LITRE)	325	365	406	304	364	425	292	365	438
FINE SEED VOLUME (LITRE)	77	86	96	72	86	101	69	86	104
FERTILISER VOLUME (LITRE)	357	402	447	334	401	468	321	402	482
SEED METERING	Piket™ meters
SOIL OPENER	Double disc opener with press wheel
DEPTH CONTROL	Press wheel
SEED BIN DRIVE SYSTEM	16” Wheel and chain transmission
UNIT TRAVEL FOR UNEVEN FIELDS	355 mm
DRIVE WHEEL POSITION	Mounted front of the planter
